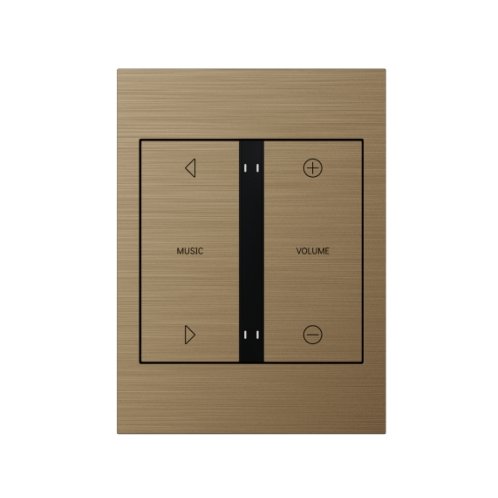

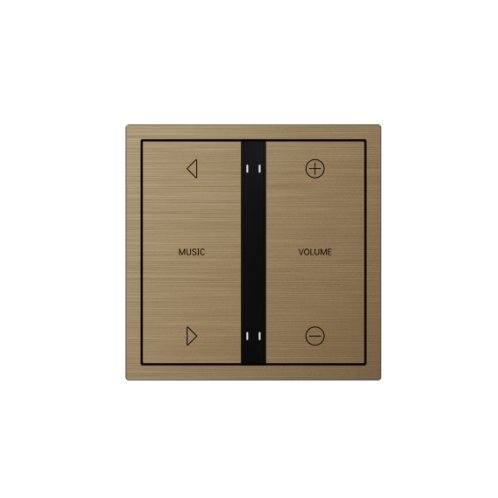

Xelent Series 4 Buttons Smart Panel
model:MPBXL-4B-BP.18
Xelent Series 4/6/8 Buttons Smart Panel, with mechanical buttons, supports a variety of button modes and button control types. It can achieve basic control functions such as switch, dimming, colour temperature, RGB control, curtain, scene, etc.
Xelent Series 4/6/8 Buttons Smart Panel, with mechanical buttons, supports a variety of button modes and button control types. It can achieve basic control functions such as switch, dimming, colour temperature, RGB control, curtain, scene, etc. It also has a built-in temperature sensor to detect the local temperature and upload it to the Buspro cable; each group of buttons can be customized with laser engraving ,with corresponding RGB indicator lights are designed on the side of each button. The colour and brightness of button indicators can be customized through HDL commissioning software. Xelent Series panels have plastic and metal versions. Their excellent performance and wide range of application scenarios make them an ideal choice for modern home intelligent design solutions.
Main functions:
Lighting control: switch, dimming, colour temperature, RGB
Curtain control: support curtain opening, closing, and stopping percentage control
Scene control: support one-button scene control
Built-in temperature sensor: support sending local temperature value to the bus for scene and automation control condition input.
RGB LED indication function: support customizing the brightness and colour of the button indicator light.
Button locking function: support panel button locking function to prevent outsiders from manually controlling the panel or children from accidentally touching it.
Proximity sensing function: support automatically sleep of the button indicator, the human body approaches to wake up the indicator.
Button text laser engraving customization: support custom button laser engraving, according to user needs for text size and content engraving, making it easy to identify the control target of the button
Dimensions (W X H X D)
81.3×81.3×9(mm) (Not including power interface)
Net weight
PC:
4 Buttons: 59.4g
6 Buttons: 59.6g
8 Buttons: 59.1g
Metal :
4 Buttons: 74.3g
6 Buttons: 74.5g
8 Buttons: 74.3g
