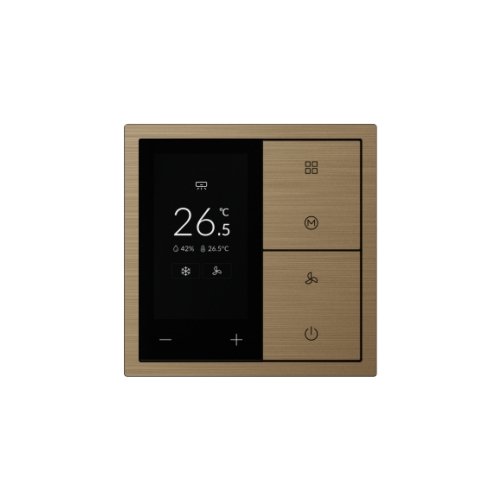

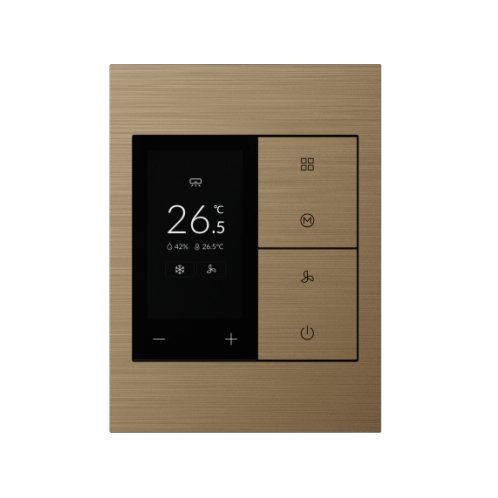

Xelent Series Thermostat Panel
model：HDL MPHXL-6B-BP.18
Xelent Series Thermostat Panel has a segmented LCD screen and mechanical buttons, each button supporting laser engraving, and it has air conditioning, underfloor heating, fresh air pages and mode, wind speed pages.
Xelent Series Thermostat Panel has a segmented LCD screen and mechanical buttons, each button supporting laser engraving, and it has air conditioning, underfloor heating, fresh air pages and mode, wind speed pages.
Key functions:
Built-in temperature and humidity sensor collects the temperature and humidity of the location of the device and displays it on the screen, supporting scene linkage with other devices of HDL system
Human proximity sensor: When the human body approaches this device, the panel’s display screen will light up automatically.
Screen backlight brightness can be set on HDL Studio software.
HVAC control: air conditioning control (VRF), floor heating control, fresh air control.
Button lock/unlock function
Support HDL Buspro online upgrade
Input ≤264mA/5V DC
Power ≤55mA/24V DC
Communication protocol Buspro
Working temperature -5℃~45℃
Working relative humidity ≤90%RH, non-condensed
Storage temperature -20℃~60℃
Storage relative humidity ≤93%RH
