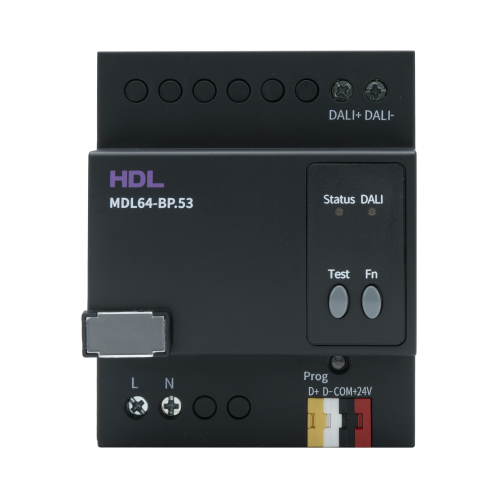

Buspro-DALI Controller

model：MDL64-BP. 53

Buspro-DALI is a DALI-2 dimming control module based on HDL Buspro communication protocol. The device has single-loop control, area/group control, scene control, sequence control, and can realize intelligent control of lighting equipment and linkage control of intelligent equipment through APP.

Buspro-DALI is a DALI-2 dimming control module based on HDL Buspro communication protocol. The device has single-loop control, area/group control, scene control, sequence control, and can realize intelligent control of lighting equipment and linkage control of intelligent equipment through APP.

-Supports 64 DALI drives with different functions
-Multiplexing of pre-set parameters in the driver
-Supports dimming, color temperature and color control.
-Supports 16 zones/groups of settings, which can be controlled separately
-16 scenes can be set in each independent area, reaching a maximum of 256 scenes
-Sequence can be set to select different areas of the scene
-Support status feedback
-Support bus short circuit protection
-Support OTA upgrade

Rated voltage: 24V DC

Rated current: 15mA / 24V DC

Input voltage: 100 – 240V AC，50/60Hz 0.1A

Output current: 0.25A/17.0V DC

Total number of drivers supported: 64

Communication protocol: Buspro, DALI

Working temperature: -5℃ ~ 45℃

Working relative humidity: ≤90%RH, non-condensed

Storage temperature: -20℃ ~ 60℃

Storage relative humidity: ≤93%RH
