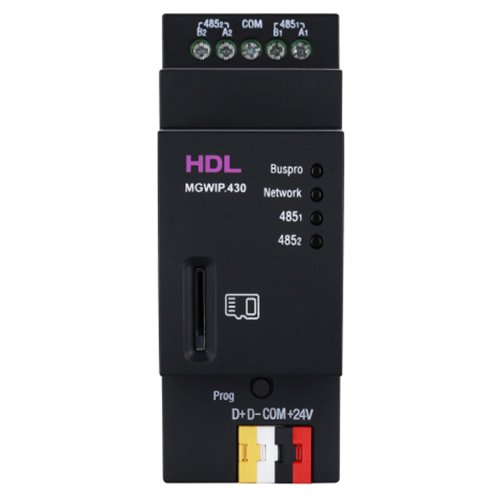

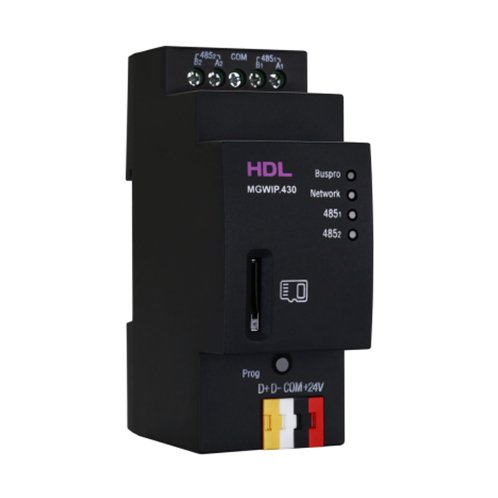

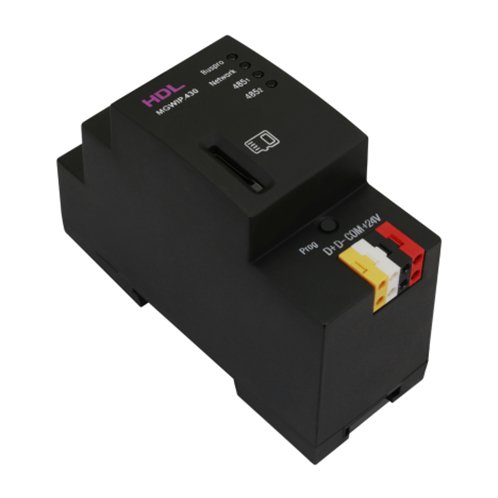

Buspro Gateway(HomeKit Version)

model：MGWIP.430

Buspro Gateway is a product designed based on Linux system hardware platform. It supports HDL Buspro Setup Tool, ON Pro, Cloud server, etc., integrating scene, logic, security, clock, server automatic prompt upgrade and other functions.

Buspro Gateway is a product designed based on Linux system hardware platform. It supports HDL Buspro Setup Tool, ON Pro, Cloud server, etc., integrating scene, logic, security, clock, server automatic prompt upgrade and other functions.HomeKit is a smart home platform released by Apple in 2014. Apps created with HomeKit allow you to control connected accessories in your home.

Buspro gateway(HomeKit Version) supports the following functions currently: switch, dimming, CCT, RGB, curtain motor, curtain panel (Apple only support open and close )

Support commissioning software startup function: air conditioning

Its main functions include:
■ Real-time update of device status and device control
■ Scene function: add scene, * area capture scene, * movie (dynamic) scene function
■ Automation function
■ Security function
■ Support local clock, network clock, automatic synchronization of network time
■ The server application automatically prompts for upgrade
■ Supported protocol http tcp udp mqtt
■ Communication via LAN between App and gateway
■ APP remote access through the Cloud
■ System detection, device status report
■ Support backup upload and download of APP, Cloud, * SD card, debugging software
■ Drive management of third-party products
■ Factory reset function
■ Data backup and data recovery function
Note: The functions with * are not yet open for use.
Basic Parameters
Working voltage: 15~30V DC
Working current: 70mA/24V DC
Communication protocol: HDL Buspro, Ethernet, RS485

Hardware information: 1.2GHz, 512M RAM, 4G Flash

Operation system: Linux 3.2.0 Kernel

External Environment


Working temperature: -5℃~45℃
Working relative humidity: ≤90%

Storage temperature: -20℃~60℃

Storage relative humidity: ≤93%

Specifications

Dimensions: 90×36×63.7 (mm)
Net weight: 82g
Housing material: PA66
Installation: 35mm DIN rail installation
Protection rating (Compliant with EN 60529): IP20
