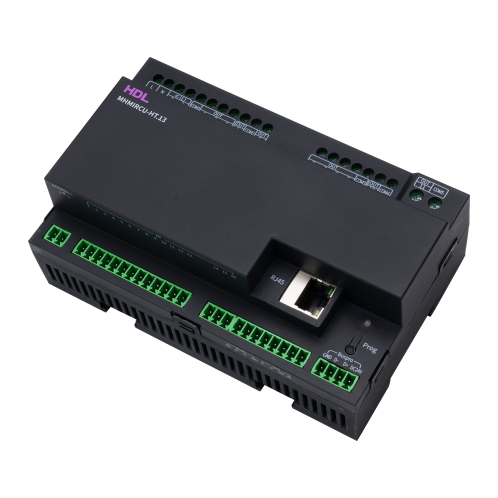

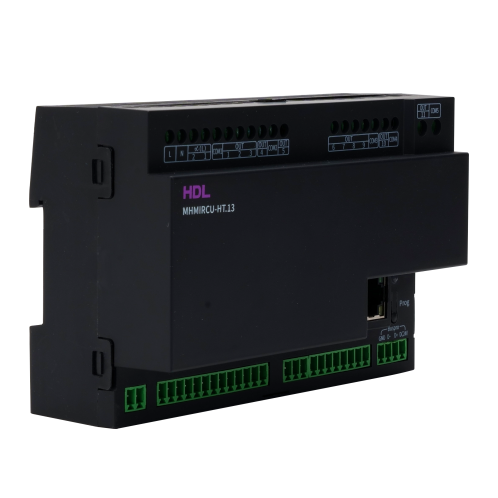

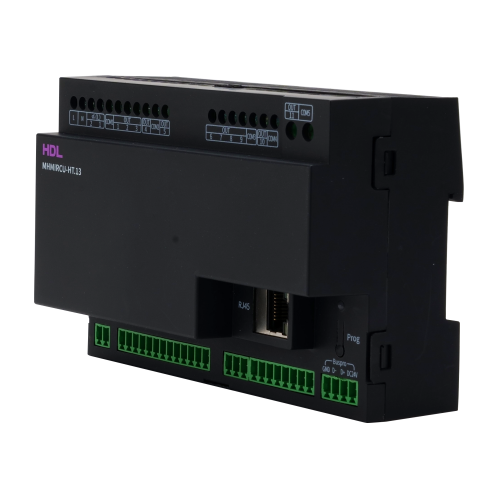

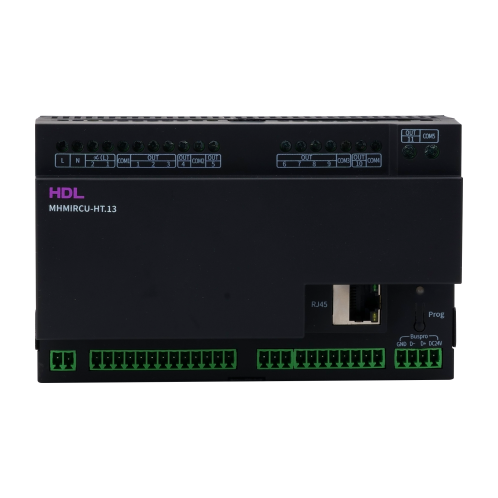

RCU Lite
model：MHMIRCU-HT.13
RCU Lite is an RCU module with thirteen integrated channels, including seven TV8 relays, three light strip control channels, one 25A relay, two MOSFET dimmer channels and one doorbell output; the device is equipped with sixteen dry contacts supporting multiple input and output modes; it supports cloud servers and is widely used in hotel smart home systems for controlling and managing doorbell panels, curtains, lamps, fans, air conditioners, floor heaters and other devices.
RCU Lite is an RCU module with thirteen integrated channels, including seven TV8 relays, three light strip control channels, one 25A relay, two MOSFET dimmer channels and one doorbell output; the device is equipped with sixteen dry contacts supporting multiple input and output modes; it supports cloud servers and is widely used in hotel smart home systems for controlling and managing doorbell panels, curtains, lamps, fans, air conditioners, floor heaters and other devices.
Network connection: Using UDP network communication, RCU Lite has an RJ45 port, which can connect to each room, reception and management software. Through HDL Hotel Room Management System, the module can integrate with the third party management software to exchange information.
Dual interface support: RS485 interface can be used for third-party device; Link interface supports Buspro control within HDL.
Buspro cable control: Buspro cable interface with HDL Buspro protocol.
Power on mode: power on with/without a keycard.
Channel control: thirteen common channels for controlling relays, dimmers and other devices.
Device support: up to eight groups of air conditioners, eight groups of curtain motors, four fans, three channels of heated floors , supporting synchronization of device control status to the controlling terminal (air conditioners, curtains, lamps, etc.).
Dry contact setting: sixteen channels of dry contact, supporting multiple modes and input/output settings.
Customizable doorbell: Users can choose how to control doorbell.
Scene Setting: Support fifty scenes, each scene can be configured with thirty-two targets.
Logic control: forty-eight general logic, including eight commonly used logic.
Support system time setting.
Record saving: The last history record automatically saved.
Rated voltage: 20 – 30V DC
Input voltage: AC 100~240V，50/60Hz
Rated current: 1.32A/24V DC
Communication protocol: Buspro，RJ45，RS485
Interface: UDP/IP interface
Communication interface: HDL Buspro，Inner Buspro，RS485
Working temperature: -5℃ ~ 45℃
Working relative humidity: ≤90% RH, non-condensed
Storage temperature: -20℃ ~ 60℃
Storage relative humidity: ≤93%
