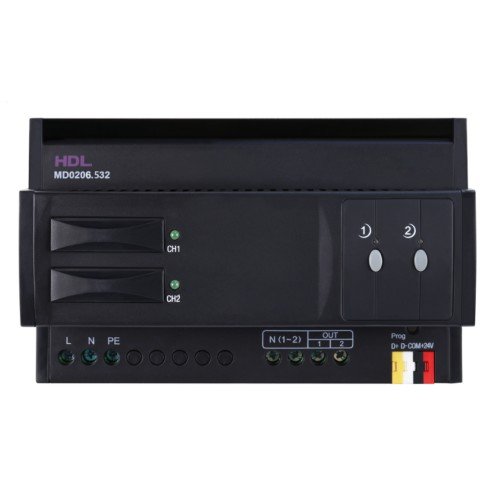

2CH 6A Leading Edge Dimming Actuator
model：HDL-MD0206.532
2CH 6A Leading Edge Dimming Actuator (hereinafter referred to as the “product” or “device”) is compatible with 220V AC and 110V AC power input, which supports two output channels. For each channel, it is respectively equipped with fuse, bypass button and indicators to protect the product against short circuit.
2CH 6A Leading Edge Dimming Actuator (hereinafter referred to as the “product” or “device”) is compatible with 220V AC and
110V AC power input, which supports two output channels. For each channel, it is respectively equipped with fuse, bypass
button and indicators to protect the product against short circuit.
1. Up to 2 separate zones; Up to 12 scenes for each zone
2. Up to 6 sequences ; 12 steps for each sequence
3. Low, high and maximum threshold for each channel
4. 10A fuse of each channel for protection (aR type)
5. Auto status recall of scenes or designated scenes after reboot
6. 4 dimming curves with 512 dimming accuracy
7. Short circuit protection, overheat protection
8. Online update
Dimensions (W X H X D) : 144×90×64mm（See Figure 2 & 3）
Net weight: 603g
Housing material: Nylon, PC
Installation: 35mm DIN rail mounted (See Figure 5 & 6）
IP degree (compliant with EN 60529): IP20
Approved: CE
