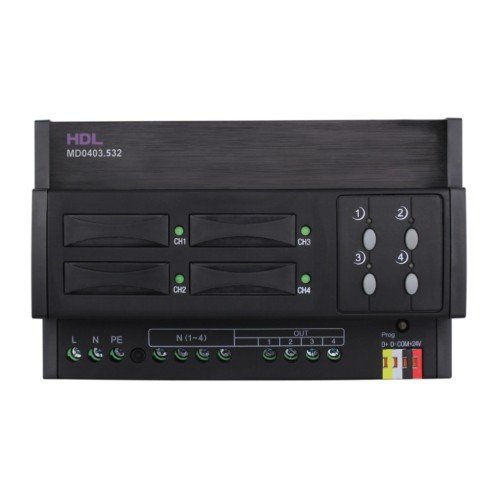

4CH 3A Leading Edge Dimming Actuator
model：HDL-MD0403.532
4CH 3A Leading Edge Dimming Actuator (hereinafter referred to as the “product” or “device”) is compatible with 220V AC and 110V AC power input, which supports four output channels. For each channel, it is respectively equipped with fuse, bypass button and indicators to protect the product against short circuit.
4CH 3A Leading Edge Dimming Actuator (hereinafter referred to as the “product” or “device”) is compatible with 220V AC and 110V AC power input, which supports four output channels. For each channel, it is respectively equipped with fuse, bypass button and indicators to protect the product against short circuit.
1. Up to 4 separate zones; Up to 12 scenes for each zone
2. Up to 6 sequences ; 12 steps for each sequence
3. Low, high and maximum threshold for each channel
4. 8A fuse of each channel for protection (aR type)
5. Auto status recall of scenes or designated scenes after reboot
6. 4 dimming curves with 512 dimming accuracy
7. Short circuit protection , overheat protection
8. Online update
Dimensions (W X H X D) : 144×90×64mm
Net weight: 715g
Housing material: Nylon, PC
Installation:35mm DIN rail mounted
IP degree (compliant with EN 60529): IP20
Approved: CE
