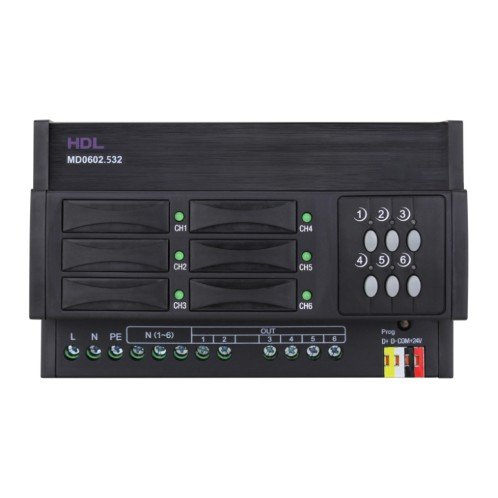

6CH 2A Leading Edge Dimming Actuator
model：HDL-MD0602.532
6CH 2A Leading Edge Dimming Actuator (hereinafter referred to as the “product” or“device”) is compatible with 220V AC and 110V AC power input, which supports six output channels. For each channel, it is respectively equipped with fuse, bypass button and indicators to protect the product against short circuit.
6CH 2A Leading Edge Dimming Actuator (hereinafter referred to as the “product” or“device”) is compatible with 220V AC and 110V AC power input, which supports six output channels. For each channel, it is respectively equipped with fuse, bypass button and indicators to protect the product against short circuit.
1. Up to 6 separate zones; Up to 12 scenes for each zone
2. Up to 6 sequences ; 12 steps for each sequence
3. Low, high and maximum threshold for each channel
4. 4A fuse of each channel for protection (aR type)
5. Auto status recall of scenes or designated scenes after reboot
6. 4 dimming curves with 512 dimming accuracy
7. Short circuit protection , overheat protection
8. Online update
Dimensions (W X H X D): 144×90×64mm（See Figure 2 & 3）
Net weight: 813g
Housing material: Nylon, PC
Installation: 35mm DIN rail mounted (See Figure 5 & 6）
IP degree (compliant with EN 60529): IP20
Approved: CE
