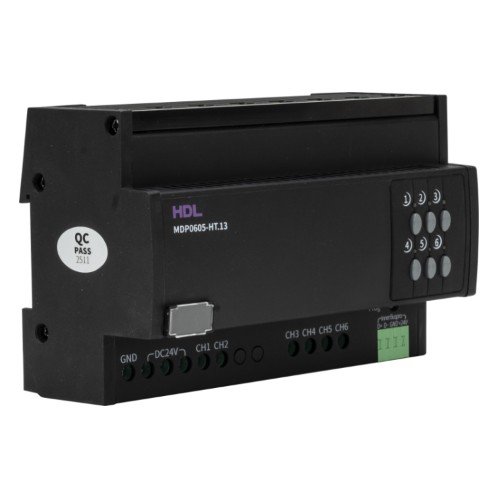

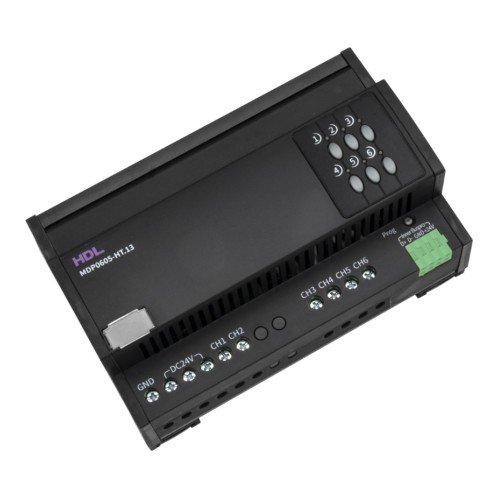

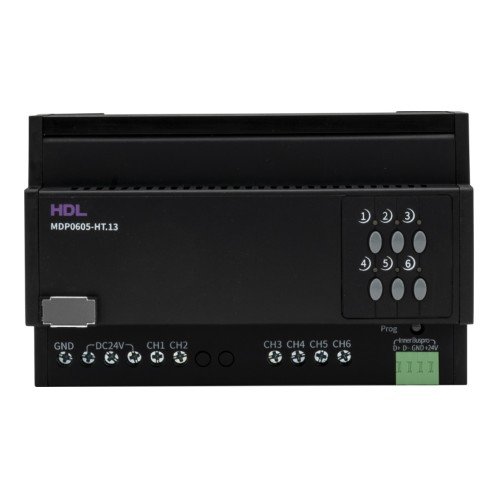

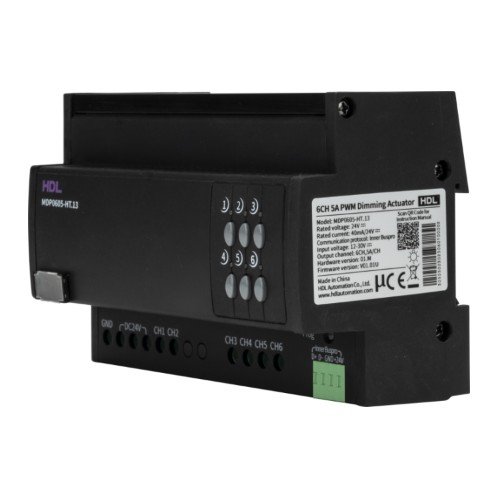

6CH 5A PWM Dimming Actuator

model：MDP0605-HT.13

Used with room control units, 6CH 5A PWM Dimming Actuator can be used to control the LED light which has constant voltage. It has 6 output channels, each channel has a bypass button for manual control.

Used with room control units, 6CH 5A PWM Dimming Actuator can be used to control the LED light which has constant voltage. It has 6 output channels, each channel has a bypass button for manual control.

Key Functions:

  • Low, high, max threshold for each channel, applicable for different load.

  • Bypass button for manual control is available for each channel.

  • Short channel and over current protection are available.

  • Maximum current in each channel: 5A

  • PWM constant voltage output

Rated voltage 24V DC

Rated current 40mA / 24V DC

LED input voltage 12~30V DC

Communication interface Inner Buspro

LED output channel 6CH, 5A/CH

Working temperature -5℃ ~ 45℃

Working relative humidity ≤90%RH, non-condensed

Storage temperature -20℃ ~ 60℃

Storage relative humidity ≤93%RH
