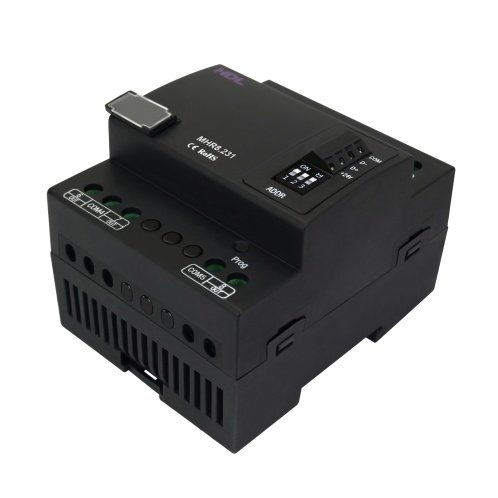

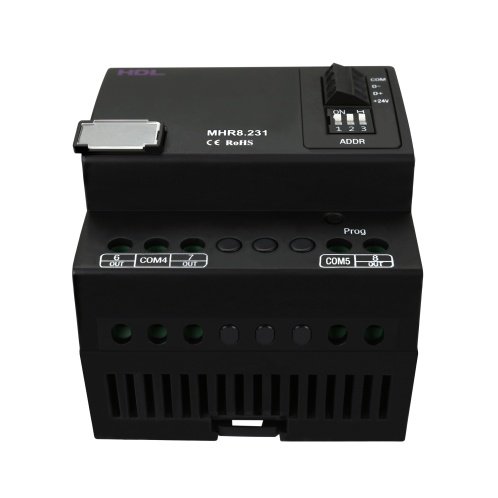

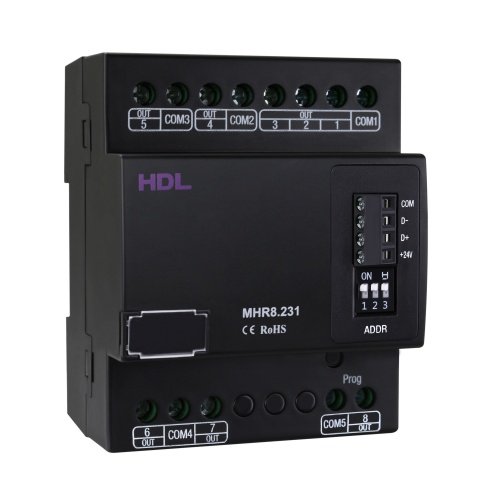

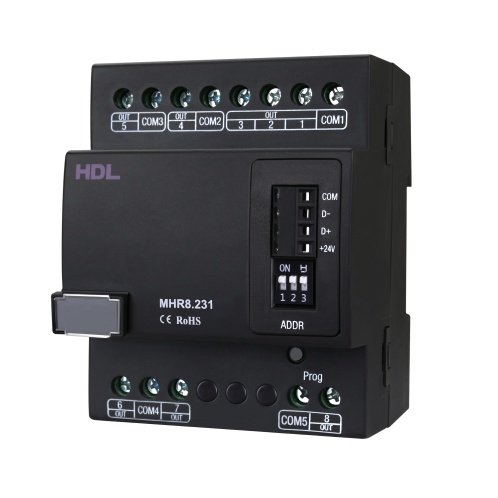

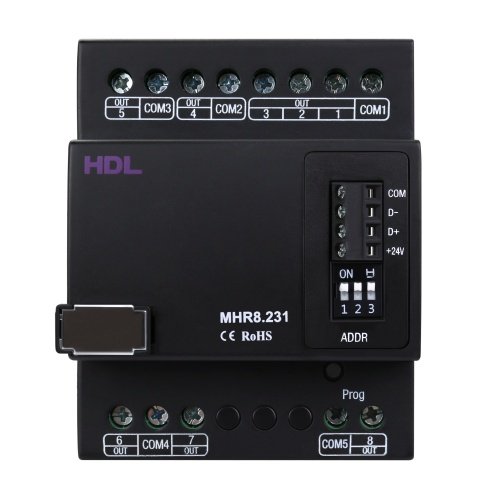

Hotel 8CH Relay Module
model：HDL-MHR8.231
HDL-MHR8.231 Hotel 8CH Relay Module is a multifunction control module which supports control output of relay switch. In conjunction with HDL Hotel Room Management System, the module can control hotel rooms, home appliances, lights and curtains, etc.
HDL-MHR8.231 Hotel 8CH Relay Module is a multifunction control module which supports control output of relay switch. In conjunction with HDL Hotel Room Management System, the module can control hotel rooms, home appliances, lights and curtains, etc.
-
8 relay channels.
-
The relay channel can control the switch of connected devices.
-
The ID address of the module can be configured easily via dial code control, or via HDL Buspro Setup Tool/(previous) HDL Hotel Room Management System for detailed configuration.
-
Inner Buspro communication is adopted. In conjunction with HDL Hotel Room Management System, the module can work in some more complicated scenes as a channel expansion module of HDL hotel host.
Working voltage: 15~30V DC
Working current: 100mA/24V DC
Output channel: 6CH/5A (AC100-240V 50/60Hz), Relay (CH1~4, CH6~7)
2CH/10A (AC100-240V 50/60Hz), Relay (CH5, CH8)
