KNX Xelent Series Thermostat Panel
model：HDL MPHXL-6B-KS.18

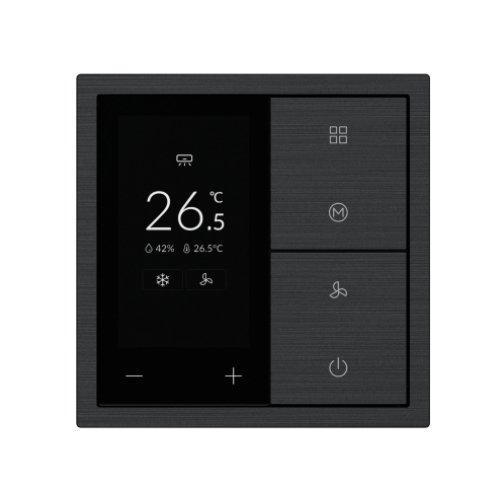

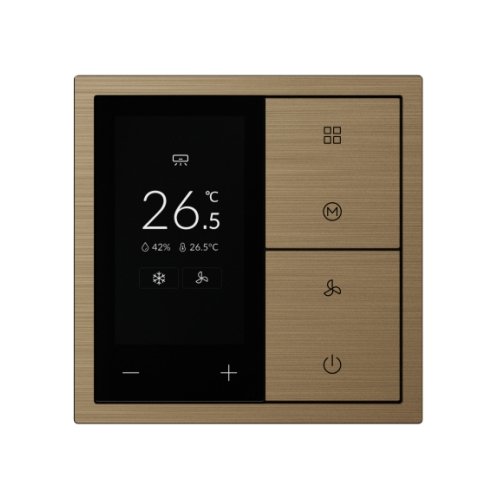

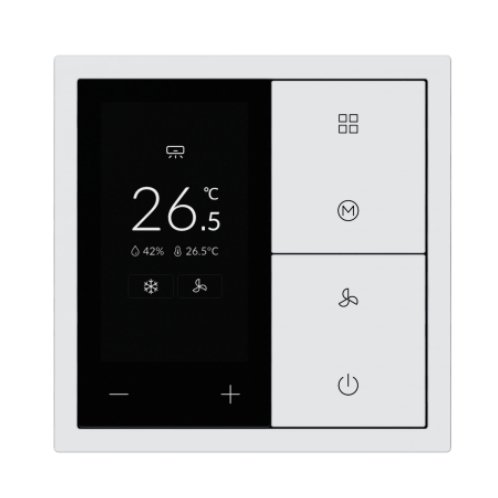

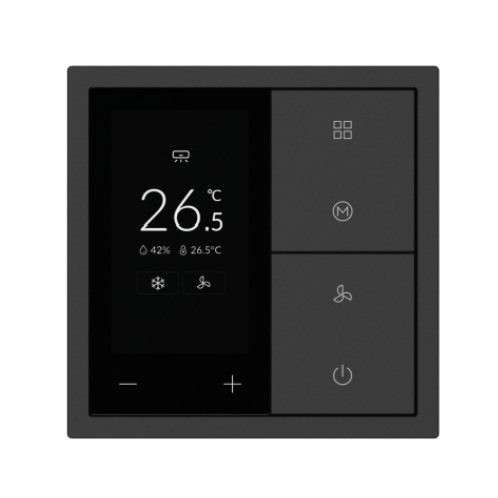

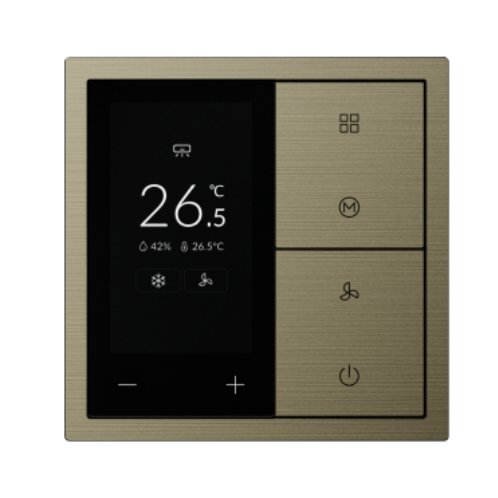

Xelent Series Thermostat Panel (hereafter referred to as the “product” or “device”, model No.: MPHXL-6B-KS.18), has a segmented LCD screen and mechanical buttons, each button supporting laser engraving, and it has air conditioning, underfloor heating, fresh air pages and mode, wind speed pages.
Xelent Series Thermostat Panel (hereafter referred to as the “product” or “device”, model No.: MPHXL-6B-KS.18), has a segmented LCD screen and mechanical buttons, each button supporting laser engraving, and it has air conditioning, underfloor heating, fresh air pages and mode, wind speed pages.
Key functions:
-
Built-in temperature and humidity sensor collects the temperature and humidity of the location of the device and displays it on the screen, supporting scene linkage with other devices of HDL system
-
Human proximity sensor: When the human body approaches this device, the panel’s display screen will light up
-
automatically.
-
Screen backlight brightness can be set on EST.
-
HVAC control: air conditioning control (VRF), floor heating control, fresh air control.
-
Button lock/unlock function.
-
Support KNX online upgrade
Input ≤250mA/5V DC
Power
KNX bus supply: 5mA/30V DC
Auxiliary power supply: 52mA/24V DC
Dimensions (W X H X D) 81.3×81.3×9(mm) (Not including power interface)
Net weight PC:63.7g; Metal: 75.7g
