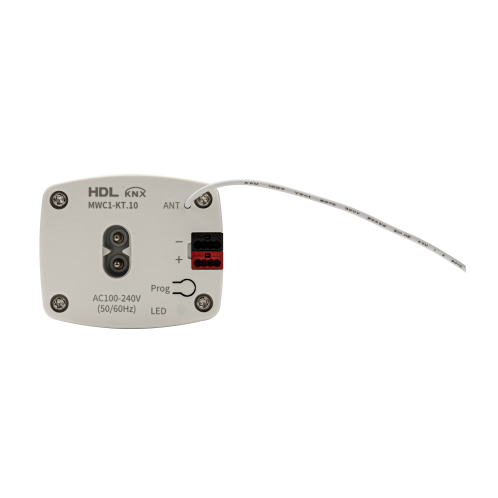

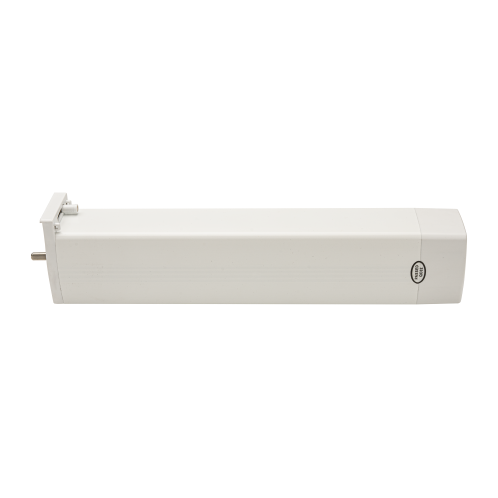

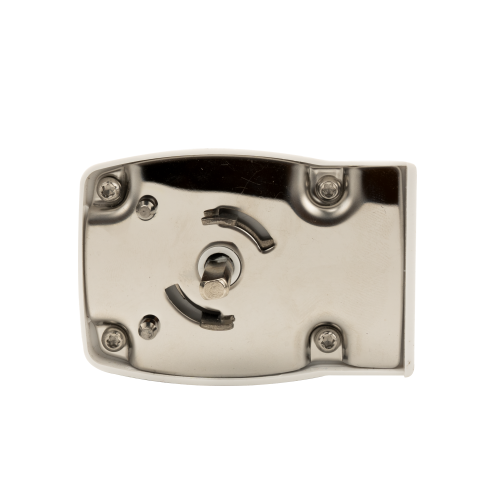

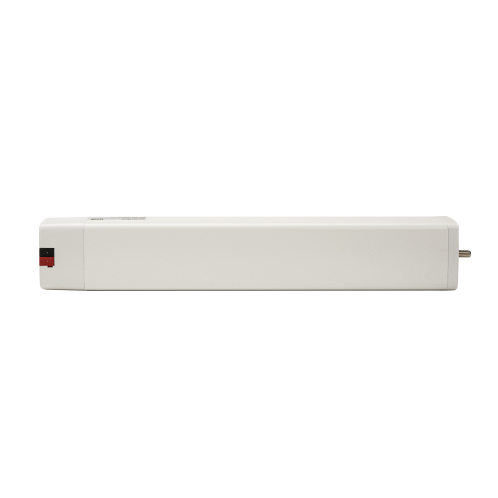

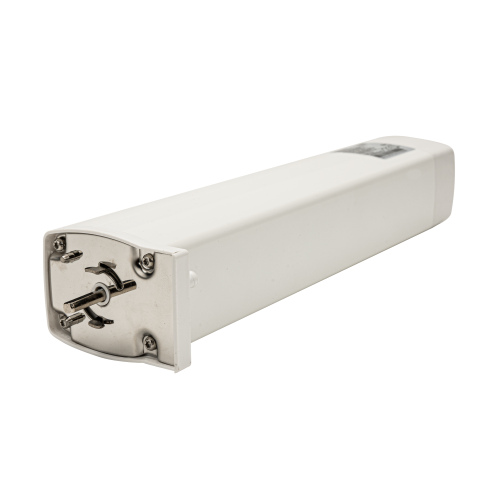

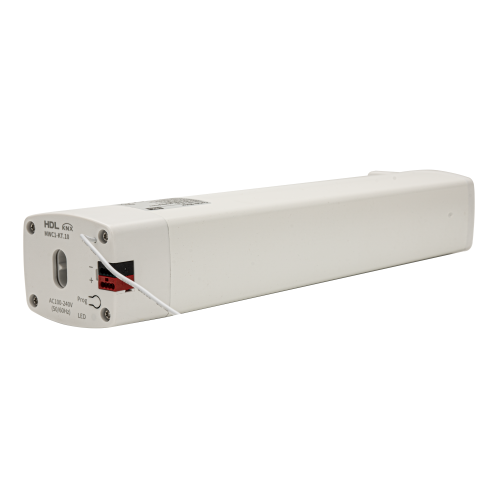

KNX Curtain Motor
model：MWC1-KT.10
Curtain Motor is designed to drive curtain track, such as open or close the curtain cloth. Additionally, the device is compatible with commissioning software and mobile APP. Upon proper installation and commissioning, it is able to integrate the device into smart room system, helping end users easily and conveniently remote control their curtains.
Curtain Motor is designed to drive curtain track, such as open or close the curtain cloth. Additionally, the device is compatible with commissioning software and mobile APP. Upon proper installation and commissioning, it is able to integrate the device into smart room system, helping end users easily and conveniently remote control their curtains.
KNX communication protocol
Curtain control: Open / close / stop / open or close at specific percentage
Touch start: The device supports “Touch Start” by default. This means, when users gently pull the curtain cloth towards any direction, curtain motor will be activated to work and automatically complete the preset travel.
Auto travel limit: After setting the motor travel limit, the motor will automatically complete the pre-set travel.
Auto modification while detecting obstacles: When single side of curtain cloth encounters obstacles, the motor will automatically modify its travel limit.
Auto pause while detecting obstruction: When curtain cloth encounters obstruction, the motor will automatically stop running.
Soft start / stop: The motor slows down before it reaches the travel limit point, which is designed to effectively protect the motor and lengthen its service life, as well as reduce motorised noise.
When the device starts up for the first time after power off then on, it will automatically proceed travel calibration.
Factory setting can be restored by commissioning software or programming button.
Through commissioning software, users can proceed advanced settings for the device, including functional configuration, data backup, data upload or download.
On-line / Manually update for device firmware.
Compatible with bi-channel or multi-channel remote controllers (optional).
Motor input voltage: 100 – 240V AC, 50/60Hz
Motor rated consumption: 22W
KNX rated voltage: 30V DC
KNX rated current: 8mA/30V DC
Motor torque: 1.2 N·m
Motor rotate speed: 90rpm
Motor maximum load-bearing: 50kg
Motor sound level: ＜30dB ,at silent mode
Communication protocol：KNX
Working temperature： -5℃ ~ 45℃
Working relative humidity： ≤90%RH, non-condensed
Storage temperature: -20℃ ~ 60℃
Storage relative humidity: ≤93%RH
