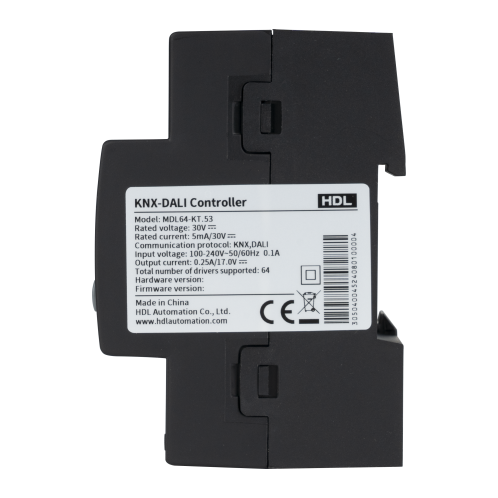

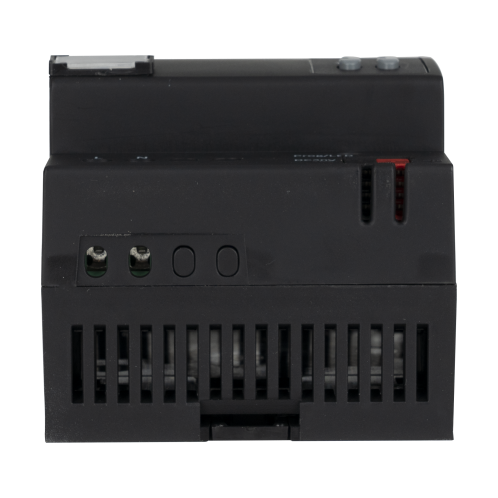

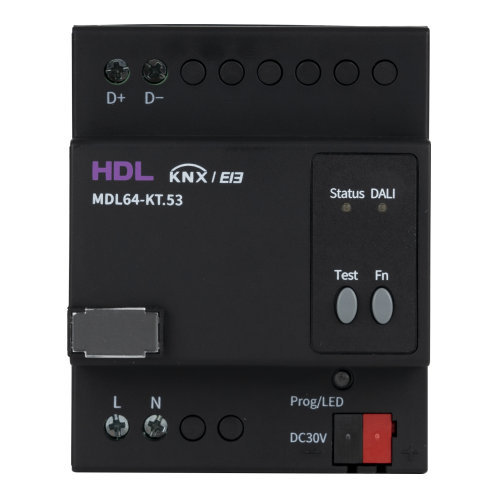

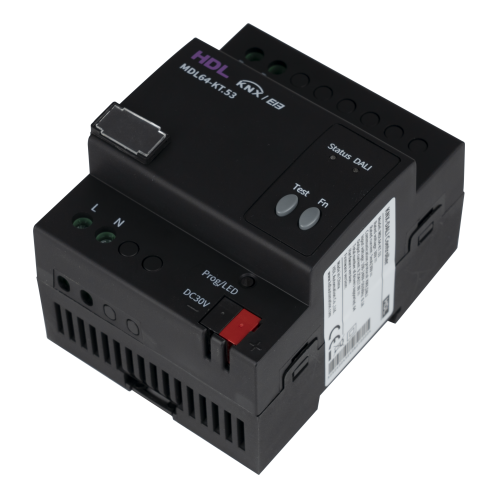

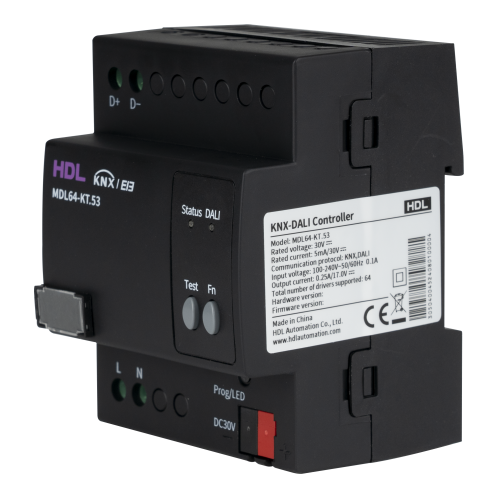

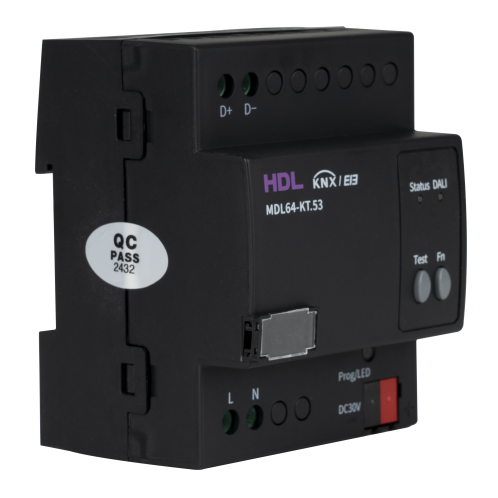

KNX-DALI Controller
model：MDL64-KT.53
KNX-DALI Controller is a DALI-2 dimming control module based on KNX communication protocol. The device has single-loop control, zone/group control, scene control, and can realize intelligent control of lighting equipment and linkage control of intelligent equipment through APP.
KNX-DALI Controller is a DALI-2 dimming control module based on KNX communication protocol. The device has single-loop control, zone/group control, scene control, and can realize intelligent control of lighting equipment and linkage control of intelligent equipment through APP.
-
Features and Specifications
-
Supports 64 DALI drivers with different functions;
-
Supports switching, dimming, color temperature and color control;
-
Control objectives: broadcast, loop, group and scene;
-
Address management and assignment of DALI drivers with HDL KNX Assistant Software;
-
DALI driver scene control, which can be configured and managed with the HDL KNX Assistant Software;
-
Status feedback;
-
Online upgrade.
Dimension: 72×90×64mm
Communication Protocol: KNX, DALI
Rated current: 5mA/30V DC
Input voltage: 100 – 240V AC, 50/60Hz 0.1A
Number of drivers supported: 64
