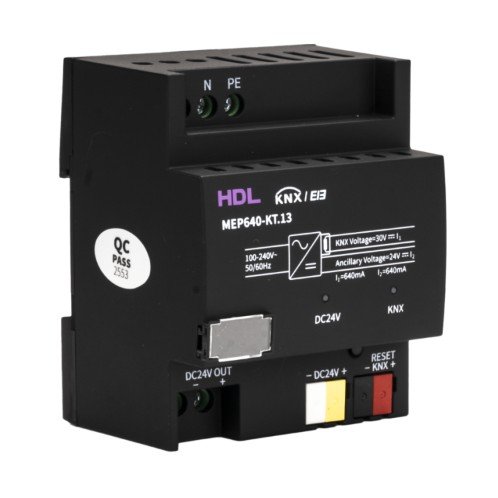

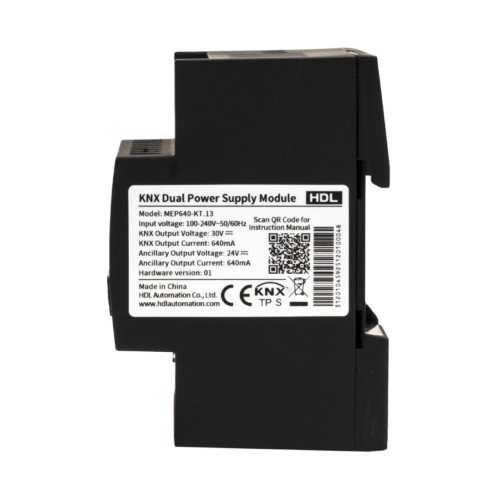

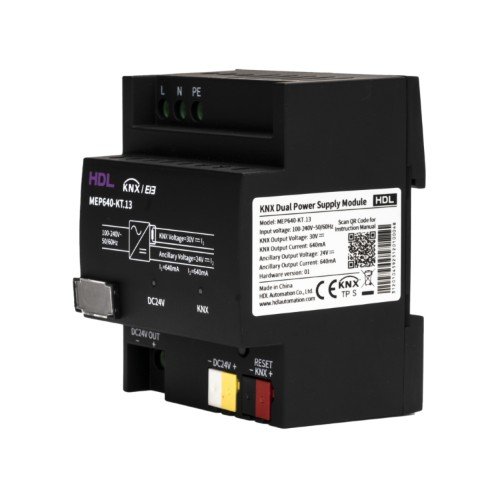

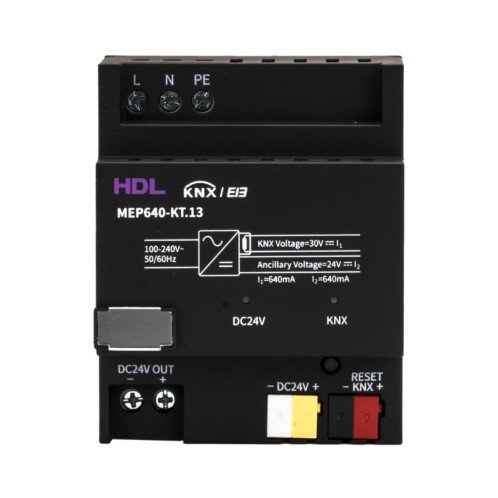

KNX Dual Power Supply Module
model：MEP640-KT.13
This product is a high-performance, dual-output power supply module compliant with the KNX standard, featuring two independent 640mA output channels. One channel integrates a choke to provide a stable system voltage for KNX bus devices;the other offers a 24V DC auxiliary power supply, supporting both KNX devices requiring auxiliary power and other 24V powered equipment. The module incorporates multiple protection mechanisms, including overload, short-circuit, overvoltage,and over-temperature protection, and supports a manual reset function. It is suitable for various smart building and automation control scenarios.
This product is a high-performance, dual output power supply module compliant with the KNX standard, featuring two independent 640mA output channels. One channel integrates a choke to provide a stable system voltage for KNX bus devices;the other offers a 24V DC auxiliary power supply, supporting both KNX devices requiring auxiliary power and other 24V powered equipment. The module incorporates multiple protection mechanisms, including overload, short-circuit, overvoltage,and over-temperature protection, and supports a manual reset function. It is suitable for various smart building and automation control scenarios.
Key Features:
Dual Independent Outputs: One channel provides standard KNX power output with a maximum load capacity of 640mA; the other offers a 24V DC auxiliary power output, also with a 640mA load capacity and dual interfaces for flexible connection of various devices.
Comprehensive Protection Mechanisms: Built-in protections against overload, short-circuit, overvoltage, and over temperature enhance system reliability.
Manual Reset Function: Press and hold the reset button for 3 seconds to enter reset mode, with reset completion in approximately 20 seconds, facilitating system debugging and recovery
Housing material PA66
Installation 35mm DIN rail mounted
