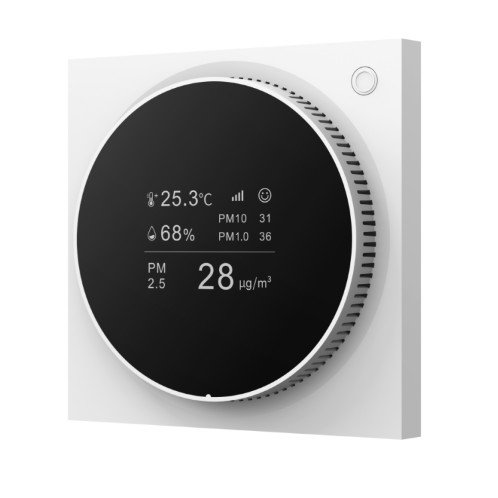

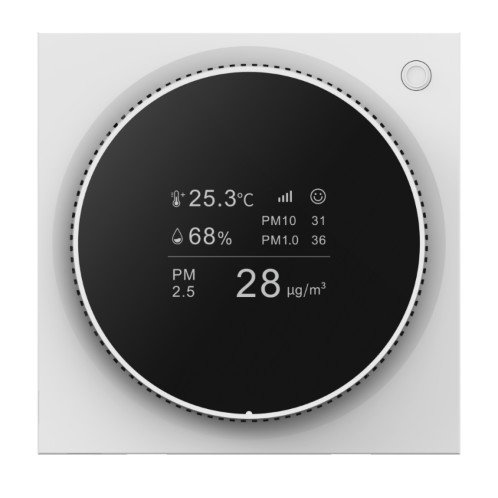

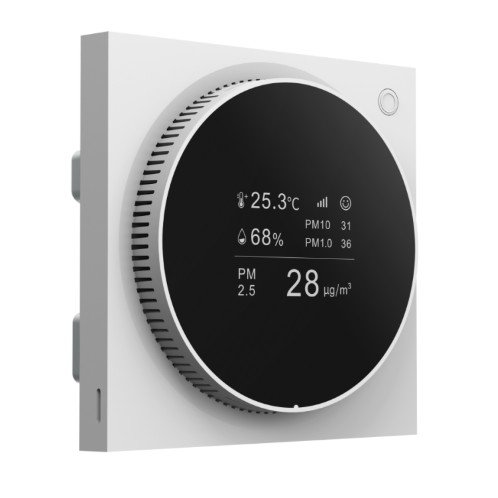

KNX Airkit2 Pro Air Quality Sensor

model：MSQP-BMDH-KT.17

It can be used to detect and display indoor air quality, including air quality indicators such as environmental temperature and humidity, Lux, PM2.5, PM1.0, PM10, CO2, TVOC and HCHO. By displaying numerical values on the screen, remote real-time viewing and linkage with other devices can be achieved to improve the air environment, playing an important role in device control, scene management and execution, and big data analysis.

It can be used to detect and display indoor air quality, including air quality indicators such as environmental temperature and humidity, Lux, PM2.5, PM1.0, PM10, CO2, TVOC and HCHO. By displaying numerical values on the screen, remote real-time viewing and linkage with other devices can be achieved to improve the air environment, playing an important role in device control, scene management and execution, and big data analysis.

Main functions:
1. Built-in temperature and humidity detection;
2. Built-in illuminance detection;
3. Built-in PM1.0, PM2.5, PM10 detection;
4. Built-in CO2 detection;
5. Built-in HCHO detection;
6. Built-in TVOC detection;
7. Built-in microwave distance detection, automatically turns on the screen when a human body is detected, and automatically turns off the screen when the human body leaves;
8. Support custom level threshold for air quality;
9. Support mixed calculation of internal and external inputs for testing projects;
10. It has 5 logical block functions, each logical block can set 10 target outputs, and supports logical locking;
Rated Voltage: 30V DC
Rated Current: 10mA/30V DC
Auxiliary Voltage: 20~30V DC
Auxiliary Power Consumption: 50mA/24V DC
Communication Protocol: KNX
